1 Lite Single Casement Steel Window
From $456.00
3 Lite Double Casement Steel Window | Custom Crafted (Ships 8-12 Weeks)
Custom craftedShips in 8–12 weeks
SKU:
$684.00
Nationwide shipping available. Confirm current shipping cost and delivery timing before ordering.
Custom crafted. Pickup is arranged after production. We will contact you when your order is ready.
Description

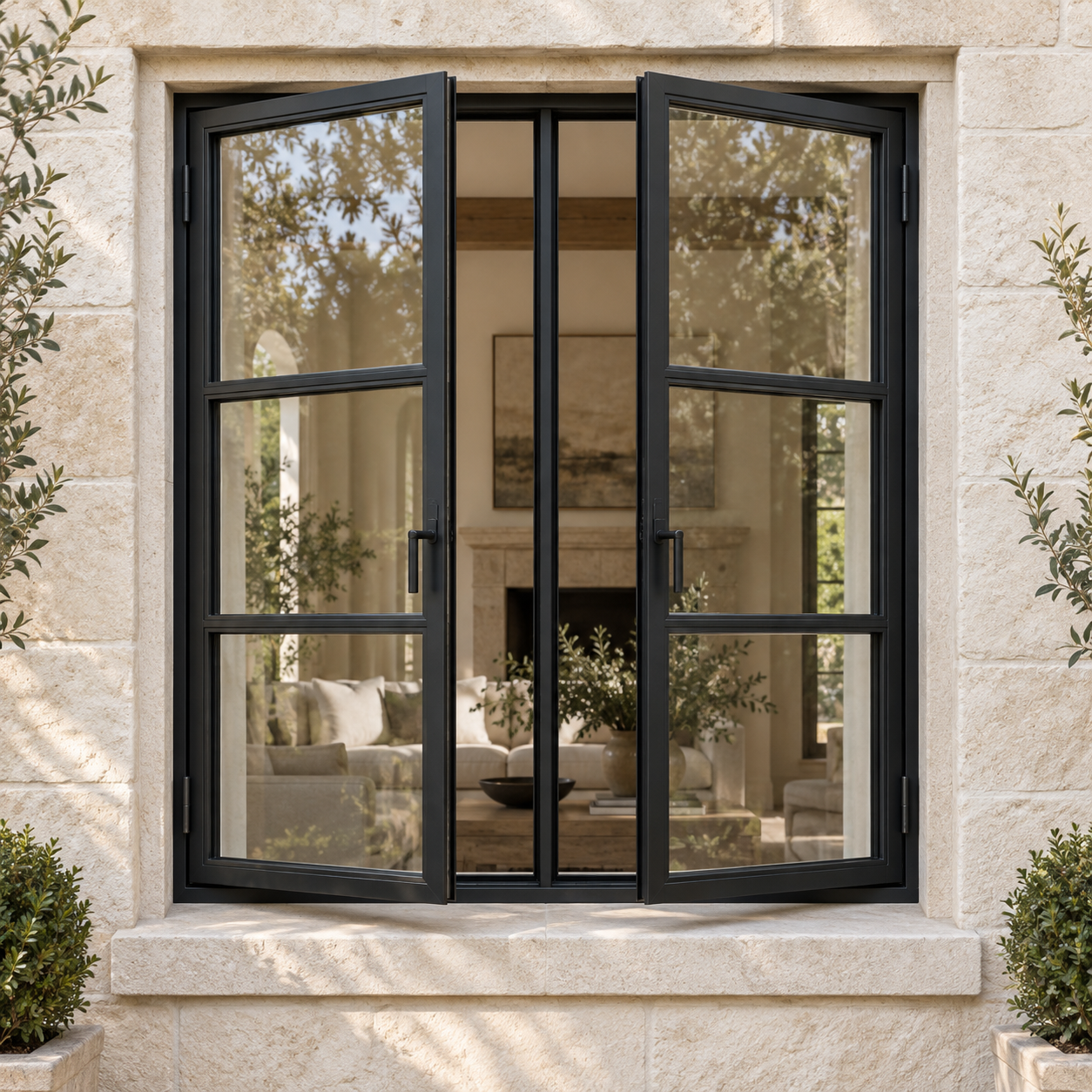

Create a generous architectural opening with a balanced, symmetrical presence. The 3 Lite Double Casement Steel Window pairs operable steel casements with three-lite detailing for a distinctive look and ventilation.
Custom Crafted (Ships 8-12 Weeks). Choose an available standard size and jamb depth, or request a custom design tailored to your project.
Window Details
Steel: Handcrafted 12-gauge iron steel. Any 5/8-inch scrollwork is subject to the approved window design.
Glass: 5/8-inch dual-pane tempered glass in an operable casement for ventilation.
Window: Pre-assembled steel window unit, configured to your selected size and jamb depth for installation.
Hinges: Heavy-duty aerospace-grade bullet hinges rated to support up to 1,500 pounds.
Installation & Downloads
Download the Window Installation Guide (PDF)
General installation guidance for USABD windows, including preparation, positioning, fastening, sealing and an installer completion checklist. Follow the approved installation details for your exact window and project.
Specifications & ordering details
Use the product options and Your selections above for your chosen configuration. The information below explains the available options; it does not change your order.
- Configuration
- Double steel casement window with three-lite detailing. Confirm handing and the required opening arrangement before fabrication.
- Dimensions
- Sizes are listed as width × height in inches. Choose an available size above; custom dimensions require a separate confirmed quote.
- Jamb depth options
- Choose 2 inches (standard), 4 inches or 6 inches above. Your selected jamb appears in Your selections.
- Glass construction & appearance
- Confirm pane construction, thickness, safety treatment and any required performance ratings with USABD before fabrication. Glass appearance choices do not establish these specifications.
- Hardware & finish
- Confirm included hardware, lock preparation and finish with USABD. Hardware pictured in images does not establish what is included.
- Lead time & delivery
- Custom Crafted — follow the timing stated on this product page. For doors marked Delivered in 8–12 Weeks, that is the total delivery estimate, including final freight transit of 3–5 days. See Shipping & delivery above for freight guidance.
Rough opening & installation
USABD standard for windows: add ½ inch to the unit width and ½ inch to the unit height in total—not ½ inch on each side. Example: a 24 × 48-inch window requires a 24½ × 48½-inch rough opening. Follow the approved installation drawing if it specifies otherwise; confirm the required opening before framing.
